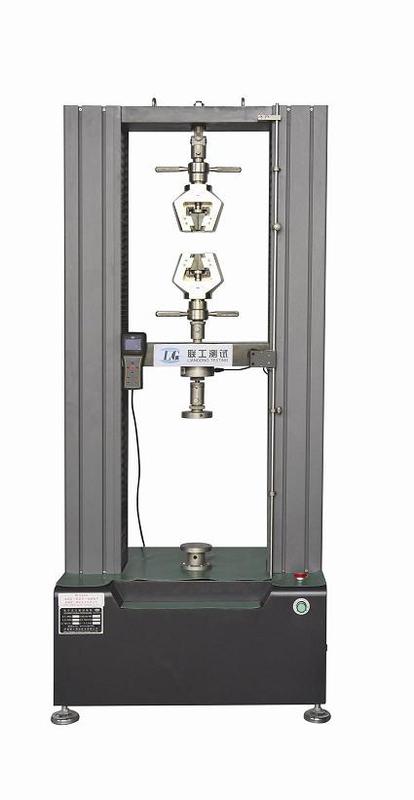

HTT SeriesElectronic Universal Testing Machine

Introduction: Tensile machine is applied inanalysis of statics property of tensile, compression, bending, cutting, load,loose, repetition of metal and nonmetal material. Suitable for breaking load test and elongationtest of wire, PVC, XLE, PE etc

Parameters:

1.Maximum test force: 5kN; 20kN; 30kN; 50KN;

2.Accuracy class: 0.5 class

3.Measuring range of test force: 0.2%～100%FS （fullscale）

4.Indicating error of test force: within ±0.5% of indicating value

5.Resolution of test force: ±1/200000 of maximum test force

6.Deformation measuring range: 0.2%～100%FS

7.Deformation indicating error: within ±0.5% of indicating value

8.Displacement indicating error: within ±0.5% of indicating value

9.Resolution of displacement: 0.025um

Configuration:

(1) Measuring system

(2) Load frame

High-precisionball screw (Taiwan TBI)

(3) Control system

DSC-10LG full digital closed loop measuring &control ; servo motor, speed regulation system (Panasonic); synchronizing belt(imported from America);Lenovo computer; HP color ink-jet printer; Control box (liquid crystal screenfor test force and displacement real time. With magnetic power, absorbed to anyposition of frame.

(4) Clamps
